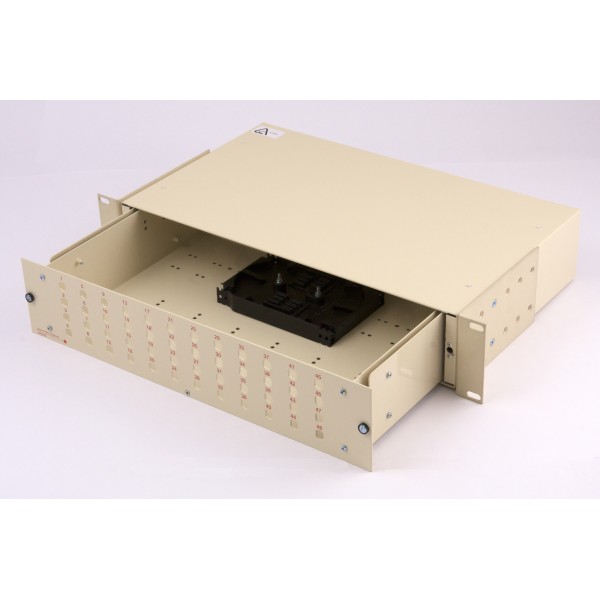

Indoor Termination Enclosure, Rack Mount, 48 Way, Sliding Tray

Indoor Termination Enclosure, Rack Mount, 48 Way, Sliding Tray

Manufacturer: Optical Fibre Systems P/L

OFS-400 2RU Rack Mount Termination Enclosure, 48 Way

More details

The OFS-400 rack mounted splice and distribution enclosure is specifically designed for LAN applications to enable optical fibre communication equipment to be connected to optical fibre cables.

The enclosure comprises of a sheet metal rectangular drawer and a 2RU high housing with adjustable recess mounting brackets. The removable front patch panel offers a convenient point for testing, jumpering, and alteration to the network layout. The patch panel has numbered ports and can be provided to accommodate either 48 ST, 24 DSC, 48 SSC through adaptors.

All patch panels are interchangeable to allow for future upgrades. The “ST” patch panel can be replaced with an DSC or SSC panel to accommodate various adaptors. This feature offers a simple upgrade path for users with existing “ST” based networks who wish to change to a fully compliant DSC network without fibre re-termination.

The drawer section comes pre-punched to accept five (5) cable glands either side in the rear wall, a maximum of four (4) splice organisers and various tie down points on the base.

The drawer can be completely removed from its rack mounted housing for ease of termination.

The enclosure is intended for mounting in the standard 19” rack frame (IEC Publication 297), the adjustable mounting brackets allow the unit to be recessed back from the rack mounting rails by 70mm.

Features:

  • Provision for five cable glands and strain relief anchor points for incoming cables
  • Supplied with two cable glands and strain relief posts. Additional items are available on request
  • Enough drawer height to stack four splice cassettes
  • Can be supplied with splice cassette organiser cassettes
  • The adjustable mounting brackets provide for patch lead protection where required

Dimensions 86H(2RU in height) x 425W x 253D (min.)

Material— Powder coated zinc anneal

Colour — Magnolia

Weight — 7kg (Package)

Please see Data Sheet for part number information.

OFS-400-**-**
