Outdoor Fiber Distribution Closure

Outdoor Fiber Distribution Closure

Manufacturer: TYCO

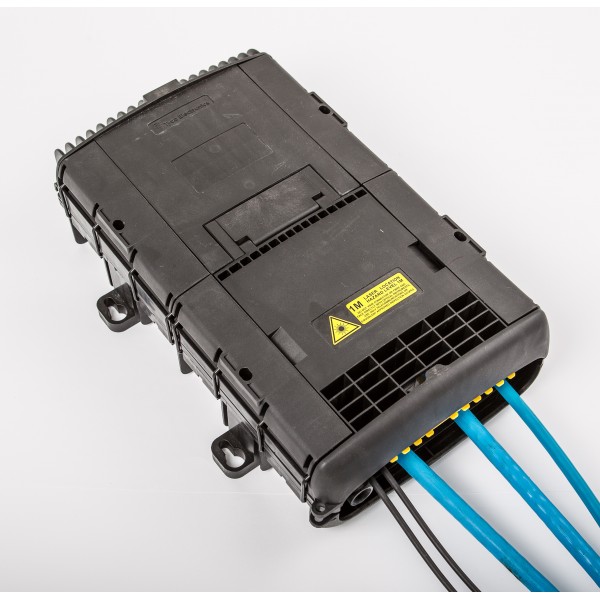

The OWB-S is a small wall-mountable fibre box, providing an environmental and mechanical protection for the fibre management system that includes the functions of storage, splicing, patching and passive component integration.

More details

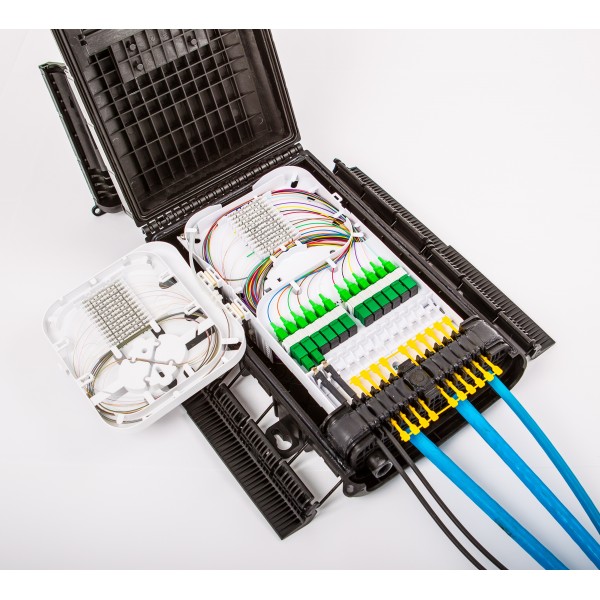

The closure can be used in aerial, pedestal and underground (up to 2 meters) environments. The closure provides separate compartments for each functional area of pigtail storage, tube breakout and splicing, and patching to drop cables.

Individual access is provided to a patching compartment, allowing connection to drop cables without disturbance of fibers stored in other compartments.

Connection to distribution cables is via Tyco tronics’ Xpres Drop Cable (SC/UPC,SC/APC connector footprints). Direct splicing is also an option. The gel seals used for both closure and cables are fully re-useable and make re-entry quick and easy.

Features:

  • Compact design
  • Separate compartments for functional area of looped cable storage, tube breakout and splicing, and patching to drop cables
  • Individual access to drop cable connection area
  • Drop cable terminated in the closure using Tyco Electronics’ Xpres-drop Cable (SC/UPC, SC/APC connector footprints)
  • Entire fiber management section can be removed from closure body
  • Compatible with RECORDsplice, SMOUV and ANT splicers
  • Splicing capacity: 24 RECORDsplice or 48 SMOUV (45mm) or combination of both
  • Also suitable for housing optical splitters
  • Four cable ports (2 of 13-15 mm, 2 of 8-10mm) and Twelve drop cable ports (3-5mm)
  • No special installation tools required
FIST-OFDC-C12
