Minature Splice Closure
- Remove this product from my favorite's list.
- Add this product to my list of favorites.
Manufacturer:

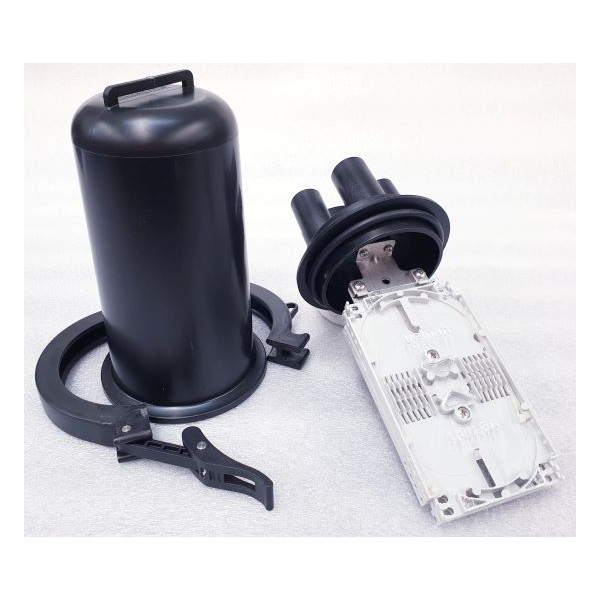

The OFS-650 Underground Fibre Optic Closure is a compact and re-enterable access closure for cable splicing and branching in external plant environments.
Constructed from high impact and heat resistant thermoplastic materials, the closure utilises the industries most effective cable sealing technology to delivery outstanding environmental protection, cable retention and performance in the harshest of environments.
Applications:
- Fibre optic cable splicing & branching
- FTTx
Back to back configuration, 2 x 24 fibre trays.
B Ports closed - HS Sleeves (3) supplied loose in kit.
Oval Port - Closed (oval port HS kit sold separately).
Features:
- Submersible - IP68 rated AS60529:2004
- Ready access and user friendly
- UV, impact and chemical resistant
- No special tools required
- Knockout cable ports
- Suits a wide range of fibre optic cable types
- Oval and single cable ports
- Proven heat-shrink cable seal with head indicator
- Complies with BT LN450 & Telstra D1484 Standards
- Compact and slim-line 12/24 Fibre Splice Trays with pass through, reverse and retention feature
- Bend radius compliant
- Single or double stack splice holders (splice tray capacity when double-stacked - 24F)
- Accepts heat shrink splice protectors - Nom, OD 2.5mm x 40-60mm long
- Transparent "clip-on" splice tray cover
